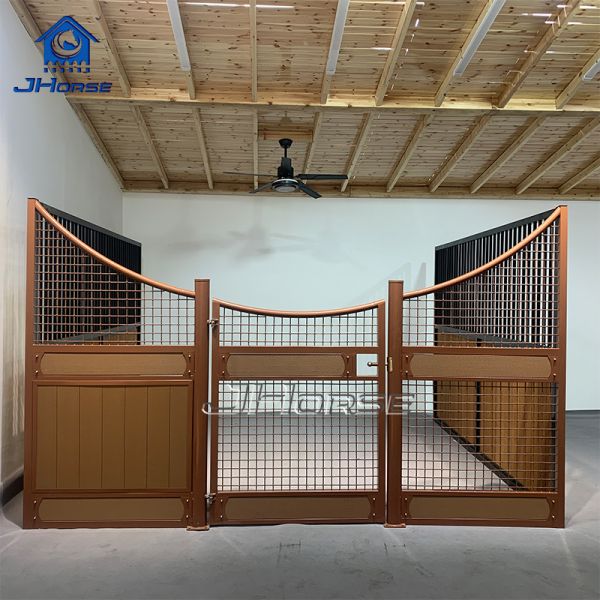

European Style Stables Sturdy And Breathable Horse Equipment For Training Grounds
Product Overview
JH Steel Grating is produced by accurately welding flat steel and cross or round bars at set intervals. Our steel grating offerings are characterized by their robust strength, light weight, strong load-bearing performance, and simple installation. The hot-dip galvanized coating delivers outstanding corrosion resistance.
Product Specifications
Material: High quality low carbon steel
Types: Serrated and plain
Finishes: Electro galvanized, hot dipped galvanized (various surface treatment options available)
Grating Standardizations
| Countries | National Standards for Grating | Materials | Galvanizing Standards |
| China | YB/T 4001.1-2007 | GB 700-88 | GB/T13912-2002 |
| America | ANSI/NAAMM(MBG531-00) | ASTM(A36) | ASTM(A123) |
| Britain | BS4592-1995 | BS4360(43A) | BS729 |
| Australia | AS1657-1992 | AS3679 | AS1650 |
Technical Parameters
| Item | Description |
| Bearing Bar | 30x3, 30x5, 30x100mm |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc |
| Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan:JIS |
Payment Terms
- L/C at sight
- T/T, 30% deposit by T/T and 70% balance by T/T before shipping
Packing Details
Products are typically arranged in a stacked formation, with two square wooden pieces placed on the top and bottom surfaces. Four to six M10 long bolts pass through the gratings and are fastened together, allowing convenient handling by both forklifts and cranes.
Why Choose JH Steel Grating?
- Standard production line with a comprehensive quality management system
- Advanced manufacturing equipment featuring computer-automated CNC welding and pressing machines
- Established manufacturer with industry expertise dating back to 2006
- Team comprising over 10 seasoned engineers guaranteeing cutting-edge product technology
How to Order Steel Bar Grating
- We provide drawings with comprehensive specifications (including material, grating type, surface treatment, and quantities.
- For customers who are unable to supply drawings, we offer complimentary design services tailored to your application needs.
- Free design requires details such as application area, boundary conditions, and precise dimensions.
Product Dimensions
- Length: 3000mm, 3600mm, 3800mm, 4000mm
- Height: 1800mm, 2200mm, 2400mm
- Standing Post: OD115mm
- Frame and middle brack: SHS 50x50mm
- Surface treatment: Hot-dipped galvanized/ (black, green, red etc) powder coating
